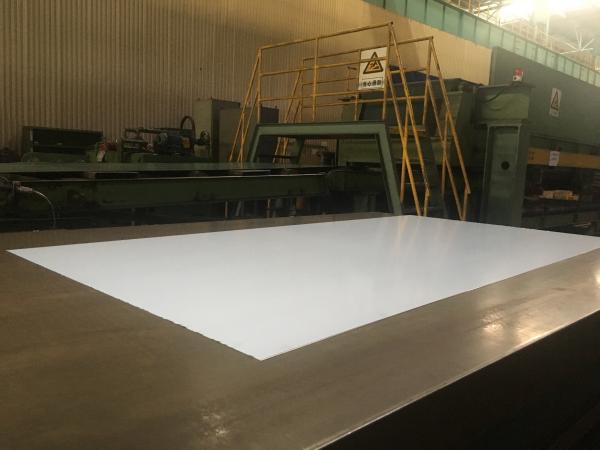

    316 316L 8x4 Stainless Steel Sheet

    Ask Lasest Price
    Brand Name : HONGSTEEL
    Model Number : 316 304
    Certification : ISO,SGS,TUV,Mill Test Report or the third party Test (SGS)
    Price : Price Is Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000tons per month
    Delivery Time : 7-45days
    • Product Details
    • Company Profile

    316 316L 8x4 Stainless Steel Sheet

    316 316L 8x4 stainless steel sheet 8k mirror and no.4 finish with laser film


    1.Specifications about stainless steel coil/sheet


    Grade201,202,304,304L,316,316L,310S,309S,321,301,310,410,420,430,904L
    BrandTISCO ,BAOSTEEL, POSCO, JISCO, LISCO
    CertificationSGS, BV,IQI,TUV,ISO,etc
    Thickness0.2mm-150mm
    Width1000,1219,1250,1500 mm , or as your requirements
    Length2000,2438,2500,3000,6000 mm , or as your requirements
    StandardASTM, AISI, SUS, JIS, EN, DIN,GB, ASME, etc
    Delivery time5-7 days after confirming the order
    MOQ15 Ton

    2.Product description

    ype 316 (UNS 31600) is an austenitic chromium-nickel stainless steel alloy containing molybdenum. This addition increases corrosion resistance, improves resistance to pitting chloride ion solutions and provides increased strength at elevated temperatures. Properties of this austenitic stainless steel grade are similar to those of type 304 except that type 316 is somewhat stronger at elevated temperature ranges. In regards to formability, 304 stainless is usually a better option for forming operations because the higher molybdenum content in Grade 316 means that it possesses higher strength and work-hardening rates which can have adverse effects on formability. While 316 can typically be drawn and formed in a similar fashion to 304, temperature variations can make those processes challenging. For instance, the 316 alloy may become magnetic when cold worked.


    3.Chemical Composition about stainless steel coil/sheet

    ClassificationGradeMain Chemical Compositon
    CSiMnPSNiCrother
    AUSTENITE3160.081.002.000.0450.0310.0-14.016.00-18.00Mo 2.0-3.0
    316L0.031.002.000.0400.0312.0-15.016.00-18.00Mo 2.0-3.0

    4.Available Size Range by Grade and Surface Finish(Unit:mm)

    No.Width
    Thickness
    300 Series400 Series
    2D2BNO3NO4HLBA2D2BNO3NO4HLBA
    10.3≤t≤0.5Consultative RangeConsultative Range
    20.5≤t≤0.7
    30.7≤t≤0.9Available RangeAvailable Range
    40.9≤t≤1.1
    51.1≤t≤1.3
    61.3≤t≤1.7
    71.7≤t≤2.0
    82.0≤t≤3.0

    5.Surface Finish and Application area

    Surface FinishCharacteristics and application
    NO.1Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industrial tanks and chemical devices.
    NO.2DColled-rolled,annealed and pickled without skinpass,the dull products can be used as automobile parts,building material and pipes.
    NO.2BThe suiface brightness and flatness of NO2B is better than NO2D.Then through a special surface treatment to improve its mechanical properties,No2B could nearly satisfy comprehensive uses.
    NO.3Polished with abrasive belt of grit#100-#120,have better brightness with discontinuous coarse stia,used as inner and external ornaments for building,electrical applicances and kitchen utensils etc.
    NO.4Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria,but thinner than NO3,are used as bathtub building's inner and external ornaments electrical appliances,kitchen utendils and food processing equipment etc.
    #320Polished with abrasive belt of grif #320,have better brightness with discontionous coarse stria,thinner than NO4,are used for bathtub,buildings inner and external ornaments,eletircal appliances,kitchen utensiles,food processing equipment etc.
    HLPolished with abrasive belt of grit #150-#320 on the NO4 finish and has continuous streaks,mainly used as building's ornaments,elevators,door of building,frontal plate etc.
    BACold rolled,bright annealed and skin-passed,the product have excellent brightness and good reflesivity like mirror,used for eletircal appliances, mirror,kitchen apparatus,ornament materials etc.
    EmbossProvided with irregularities on one side by cold rolling(both sides can be embossed),mainly used us building's ornaments,elebators,door of building,frontal plate etc.

    6.SIZE AND TOLERANCE

    1)Tolerance on Thickness(mm):The thickness is measured at any point located more than 25 mm from the edges in the case of mill edges and at any point located more than 15 mm from the edges in case of slit edges.

    No.Thickness

    Width

    W<1250

    1250≤W<1600

    1

    0.2≤t<0.25

    ±0.03

    2

    0.25≤t<0.30

    ±0.04

    3

    0.30≤t<0.60

    ±0.05

    ±0.08

    4

    0.60≤t<0.80

    ±0.07

    ±0.09

    5

    0.80≤t<1.00

    ±0.09

    ±0.10

    6

    1.00≤t<1.25

    ±0.10

    ±0.12

    7

    1.25≤t<1.60

    ±0.12

    ±0.15

    8

    1.6≤t<2.00

    ±0.15

    ±0.17

    9

    2.00≤t<2.50

    ±0.17

    ±0.22

    10

    2.50≤t<3.15

    ±0.22

    ±0.25

    11

    3.15≤t<4.00

    ±0.25

    ±0.30

    12

    4.00≤t<5.00

    ±0.35

    ±0.40

    13

    5.00≤t<6.00

    ±0.40

    ±0.45

    14

    t=6.0

    ±0.50

    ±0.50


    2)Tolerance on width (mm)

    Width(650≤W<2400):0~+5


    3)Tolerance on length(mm)

    Length(1000≤L≤3500):0~+10

    Length(1000≤L≤3500):0~+15


    4)Tolerance on flatness

    Width

    Length

    Flatness

    W1000

    L≤2000

    ≤15

    W1000

    L>2000

    ≤20

    W>1000

    L≤2000

    ≤20

    W>1000

    L>2000

    ≤20


    The above allowable deviation can be customized according to the customer's personalized requirements.


    7.APPLICATION

    Series

    Grade

    Characteristic

    main applications

    Austenite

    High corrosion resisting

    SUS316L

    Compared with SUS316,this material has better intergranular corrosion resistance ,lower strength in high temperature ,and have no magnetism

    Chemical equipments that need better corrosion resistance and processing propert, food equipments and infrastructures along the coast

    ±0.45

    AusteniteHigh corrosion resisting

    316L


    8.PACKAGE AND SHIPMENT


    Item/Mode of packing

    Simple packing

    General packing

    Special packing

    Unit weight(mt)

    Plate

    Normal:1.5-3.5 Maximum:5.0

    Coil

    Normal:4.0-7.0 Maximum:22.0

    Normal:4.0-7.0 Maximum:8.0

    Dimension(mm)

    Plate

    Width *Length=(650-1320)*(1000-4000)

    Coil

    Inner diameter:508(normal)or 610

    Recommendations

    Applicable to direct customers located close to hong-steel (Jiangsu, Zhejiang and Shanghai )

    Applicable to most domestic customers

    Applicable to exportation and to domestic customers with special requirements

    Characteristics

    Not applicable to long distance transportation, Avoid frequent transportation, Do not expose to outdoor ,Do not lift with steel cable directly ,Not appropriate to high quality product like BA, Lower packing cost

    Do not expose to outdoor ,Better protection for products ,Lower requirement for loading ,Unloading and transportation .Appropriate to all types of surface finish product ,Lower packing cost

    Better protection for products ,Lower requirement for loading ,Unloading and transportation ,Appropriate to all types of surface finish product ,Higher packing cost ,Difficult to pack and low efficiency
